(Raizing 1993)
|
|
||||||||||||||||||||||
|
How
to use these Romsets with your PCB:

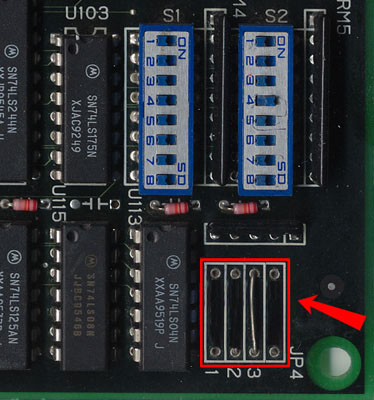

Step 1: Your Sorcer Striker PCB should have 3 Eproms on sockets. Only ROM 01 (position U65) and ROM 05 (position U81), are relevant for swapping the revision: Unpack the Rom-File from the zip archive you have downloaded from here and burn ROM 01 to a new 27C4002 Eprom, and ROM 05 to a new 27C256 Eprom, using an eprom programmer. It should work by reburning the old Eproms too, if you properly erase them first. Step 2: Set the jumpers in the corner of the PCB to the country region of your choice. Unlike Kingdom Grandprix, they don't affect the graphics. So this step is not necessary in order to make the game work. You could even use the english version Roms if the board is still licensed for Japan. hints: You can remove an eprom from a socket by sticking a flat screwdriver between eprom and socket and then rotate it carefully until it lifts both sides of pins out of their slots. Always keep an eye on the correct direction whenever you place a eprom into a socket (Make that small gap at one side of the chip, fit to the markings on the PCB) |
|||||||||||||||||||||||
|
Features
|
JAPANESE LANGUAGE VERSION
|
ENGLISH LANGUAGE
VERSION
|
|
Title
Screen
|
japanese
|
english
|
|
Selection
Screens
|
english
|
english
|
|
Story
& Dialogues
|
japanese
|
english
|
|
Country
Regions of the PCB
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
